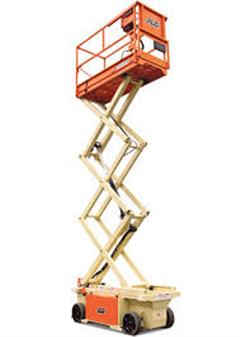

Scissor Lift 32'
|
(click for larger image)
|
Scissor Lift 32'
Style # 130-0104
Scissor lift with 32' platform height giving you a 38' working height. Platform is 48'' wide and the lift has a 700# platform weight capacity.
•Passive pothole protection eliminates all moving parts in the pothole protection system, reducing the need for repair or replacement
•Ability to traverse grades of up to 25%
•Innovative operator controls and compact dimensions enable travel through doorways
•Battery storage areas are easily accessible and have no drawers to pull out
•The direct electric drive delivers industry-leading duty cycles
Brakes Electric, Friction
Capacity - Hydraulic Reservoir 2 gal.
Ground Bearing Pressure 90 psi
Hydraulic Pump Fixed Displacement Gear
Machine Weight 6050 lb
Drive Speed - Platform Elevated 0.30 mph
Drive Speed - Platform Lowered 3 mph
Gradeability 25 %
Lift Time 60 sec.
Lower Time 60 sec.
Maximum Drive Height 32 ft
Maximum Lift Height 32 ft
Platform Capacity - Extension 250 lb
Platform Capacity - Unrestricted 705 lb
Turning Radius - Outside 10 ft 5 in.
Ground Clearance 4 in.
Machine Height 7 ft 11 in.
Machine Height - Rails Folded 6 ft 6 in.
Machine Length 7 ft 7 in.
Machine Width 4 ft
Platform Dimension A 7 ft 1 in.
Platform Dimension B 3 ft 7 in.
Platform Extension Length 3 ft
Platform Height 32 ft
Platform Height - Lowered 4 ft 7 in.
Platform Railing Height 3 ft 5 in.
Tire Size 16 x 5 in
Wheelbase 6 ft 1 in.
|
|
