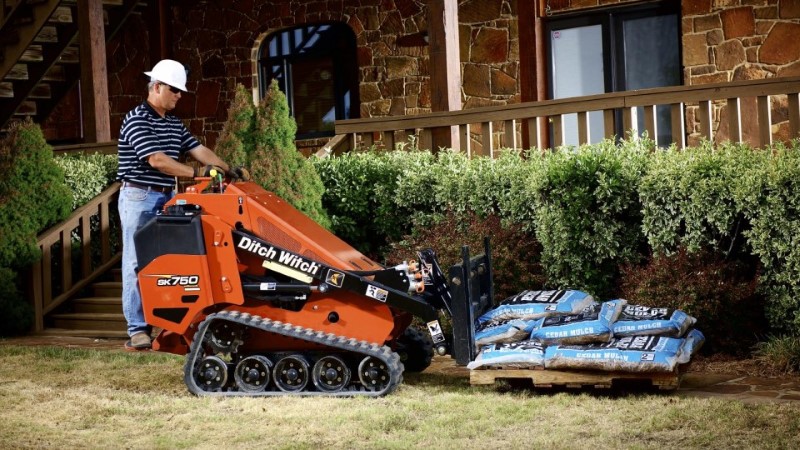

Ditch Witch Mini Skid SK750
|
(click for larger image)
|

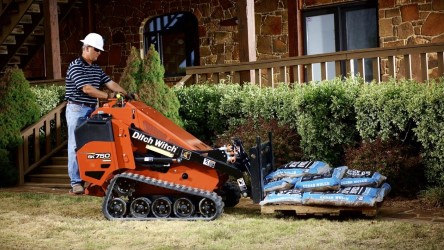

Ditch Witch Mini Skid SK750
Style # 230-0220
Operating height, max. std. bucket 103 in
Overall length of machine, std. bucket 105 in
Machine weight (no attachment,
fluids full) 2,890 lb
Hinge pin height, max 81 in
Wheelbase/track length 43 in
Track width Max 42 in
Min 36 in
Ground clearance
Center 8.9 in Side 3.7 in
Tipping capacity 2,285 lb
Rated operating capacity
35% of tip capacity 800 lb
POWER
Engine KubotaŽ D1105
Fuel Diesel
Gross power rating 24.8 hp
Ground drive speed
Forward/reverse 4.7 mph
HYDRAULIC SYSTEM
Auxiliary circuit
Double gear pump
Flow rate (Pump #1) 6.5 gpm 24 l/min
Flow rate (Pump #2) 5.5 gpm 21 l/min
Pressure 3,000 psi 207 bar
Ground drive
Dual hydrostatic pumps
Flow rate 13.9 gpm 52 l/min
Pressure 3,500 psi 241 bar
Fuel Capacity 10.5 gal
|
|
